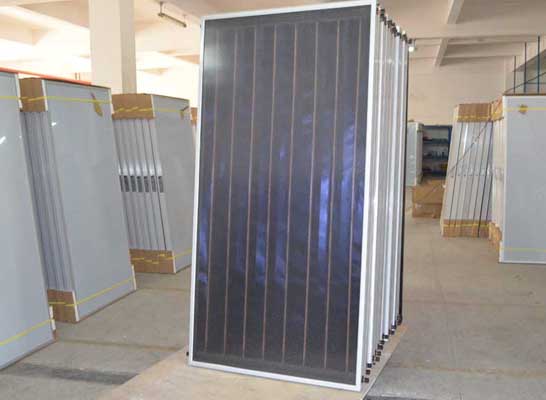

Blue Copper Strip Absorber Collector


Type: FP2.0 Blue, FP2.5 Blue, FP3.0 Blue




Innosolar's blue strip flat plate collectors are manufactured according to European quality standards. By introducing BLUETEC coating layer from Germany and applying ultrasonic welding technology, our products, with stable quality and SOLAR KEYMARK certificate, have been sold in batches to European markets. Featuring optimal and reasonable structures,fine appearance and easy installation, our products are well combined with buildings and applicable to household and scaled systems.













+ Absorber coating: Germany BlueTec coating
+ Ultrasonic Welding
+ Low-iron patterned tempered glass
+ Full copper absorber plate: high strength and standing high pressure
+ Aluminum frame with electrophoresis coating
+ Good waterproof performance
+ Easy mounting and installation
+ Worklife over 15 years









Types

FP2.0-Blue

FP2.5-Blue

FP3.0-Blue

Ext. Dimensions (mm)

2000(L) X 1010(W) X 95 (H)

2000(L) X 1250(W) X 95 (H)

2000(L) X 1500(W) X 95 (H)

Copper Riser Tubes Spec.

Ф10 X 0.5mm X 8 pcs

Ф10 X 0.5mm X 10 pcs

Ф10 X 0.5mm X 12 pcs

Copper Header Tubes Spec.

Ф22 X 0.8 X 1060 mm (2pcs)

Ф22 X 0.8 X 1310 mm (2pcs)

Ф22 X 0.8 X 1560 mm (2pcs)

Absorber Strip

125 X 0.15 mm

Surface Coating

BlueTec

Absorptivity

95±2%

Emissivity

5±2%

Insulation Material

50 mm rockwool (40K)

Frame

Aluminum alloy

Glass

3.2 mm low iron patterned tempered glass

Backing Sheet

0.5 mm Aluminium Sheet

weight of the empty collector

32 Kg

38 Kg

44 Kg

Fluid Volume (L)

1.9L

2.2L

2.6L
