Black Chrome Copper Strip Collector



Type : FB2.0-Black, FB2.5-Black, FB3.0-Black,



Innosolar’s black strip flat plate collectors are manufactured according to European quality standards. By introducing black Chrome coating layer and applying ultrasonic welding technology, our products, with stable quality , have been sold in batches to European markets.Featuring optimal and reasonable structures,fine appearance and easy installation, our products are well combined with buildings and applicable to  household and scaled systems.







Features:


+ Stylish slim line design
+ Absorber coating: black chrome
+ Textured Tempered Glass

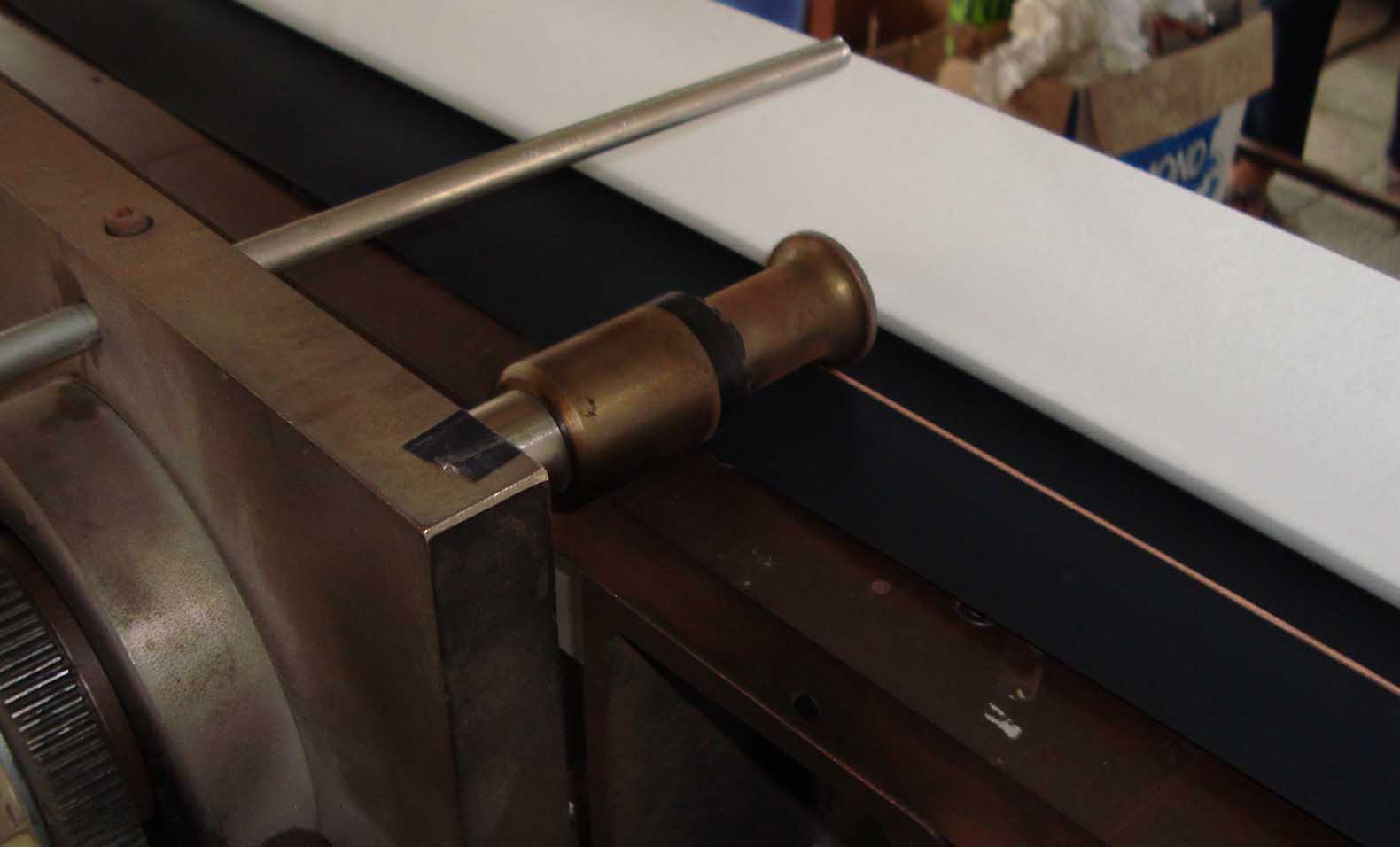

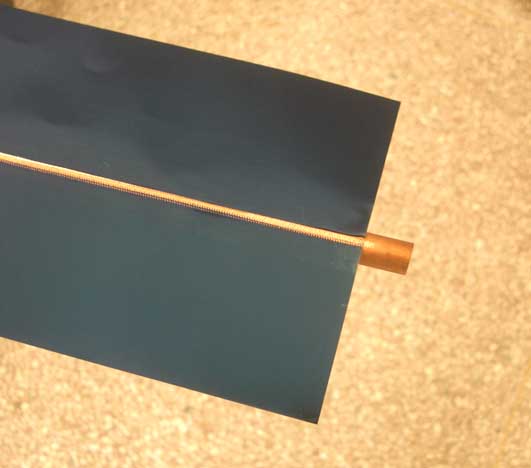

+ Copper sheet strip with Ultrasonic welding.
+ High strengthen and standing high pressure.
+ Aluminum frame with electrophoresis coating


Benefits:



+ Absorber coating have long service life
+ Glass cover with high light transmittance and strength
+ Aluminum frame : Good appearance and high anti-corrosion
+ Good waterproof performance
+ Reliable, low maintenance operation
+ Easy mounting and installation







Types

FP2.0-Black

FP2.5-Black

FP3.0-Black

Ext. Dimensions (mm)

2000(L) X 1010(W) X 82 (H)

2000(L) X 1250(W) X 82 (H)

2000(L) X 1500(W) X 82 (H)

Copper Riser Tubes Spec.

Ф10 X 0.5mm X 8 pcs

Ф10 X 0.5mm X 10 pcs

Ф10 X 0.5mm X 12 pcs

Copper Header Tubes Spec.

Ф22 X 0.6 X 1060 mm (2pcs)

Ф22 X 0.6 X 1310 mm (2pcs)

Ф22 X 0.6 X 1560 mm (2pcs)

Absorber Strip

125 X 0.15 mm

Surface Coating

Black Chrome

Absorptivity

95±2%

Emissivity

5±2%

Insulation Material

40 mm Glass wool (30K)

Frame

Aluminum alloy

Glass

4.0 mm patterned tempered glass

Backing Sheet

0.5 mm Aluminium Sheet

weight of the empty collector

30 Kg

36 Kg

42 Kg

Fluid Volume (L)

1.9L

2.2L

2.6L
