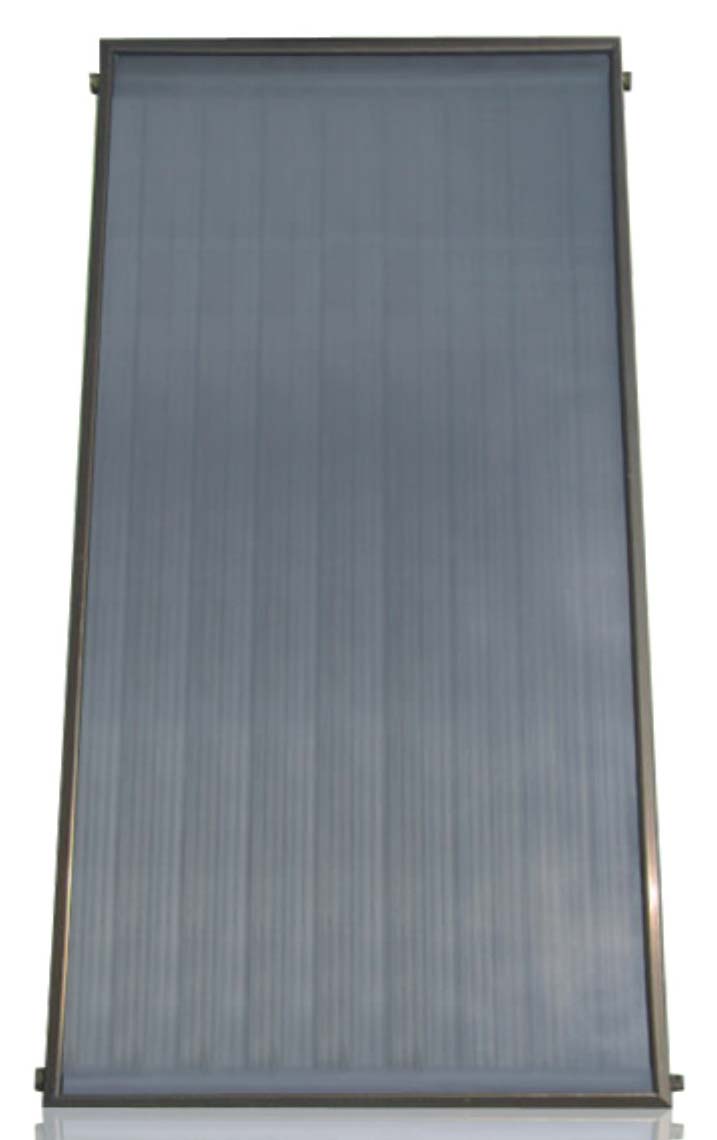

Black Anodized Aluminium Strip Collector
Type : FB2.0-Black(A), FB2.5-Black(A), FB3.0-Black(A),
Innosolar aluminium anodized fin flat collector is designed to generate maximum performance at the warm place. This type collector with press welding process.the cheaper cost for customer in special area such as in South Asia and Afric a market .The collector can be used in both closed and open circulation systems.The collector is designed to connect to multiple collectors easily, to make up a large collector field, it also can be used in different solar system.
+ Stylish slim line design

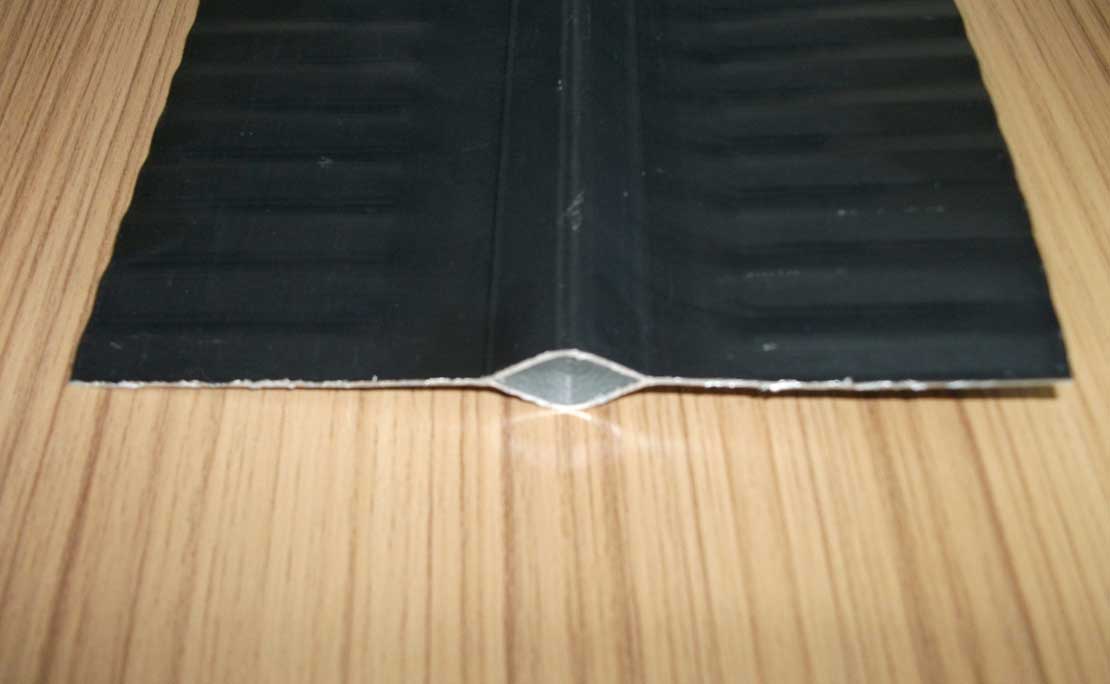

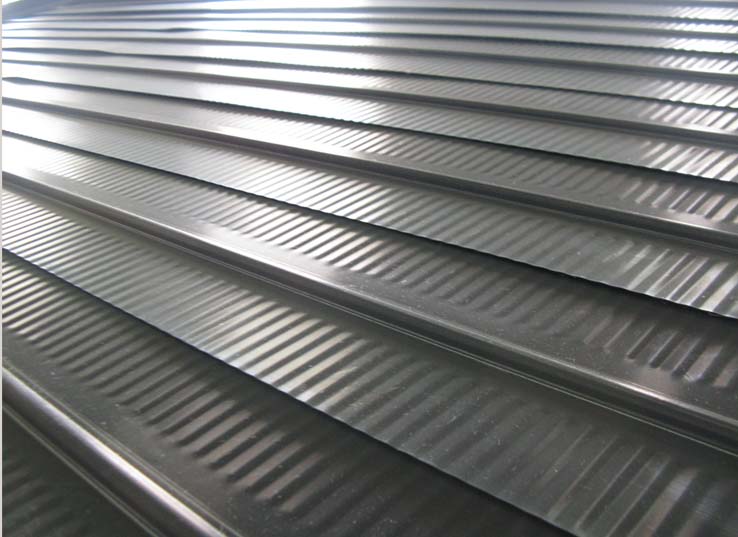

+ Absorber : aluminium anodized fin
+ press welding
+ Textured Tempered Glass
+ Aluminum frame with electrophoresis coating
|
Types |
FP2.0-Black (A) |
FP2.5-Black (A) |
FP3.0-Black (A) |
|
Ext. Dimensions (mm) |
2000(L) X 1000(W) X 82 (H) |
2000(L) X 1250(W) X 82 (H) |
2000(L) X 1500(W) X 82 (H) |
|

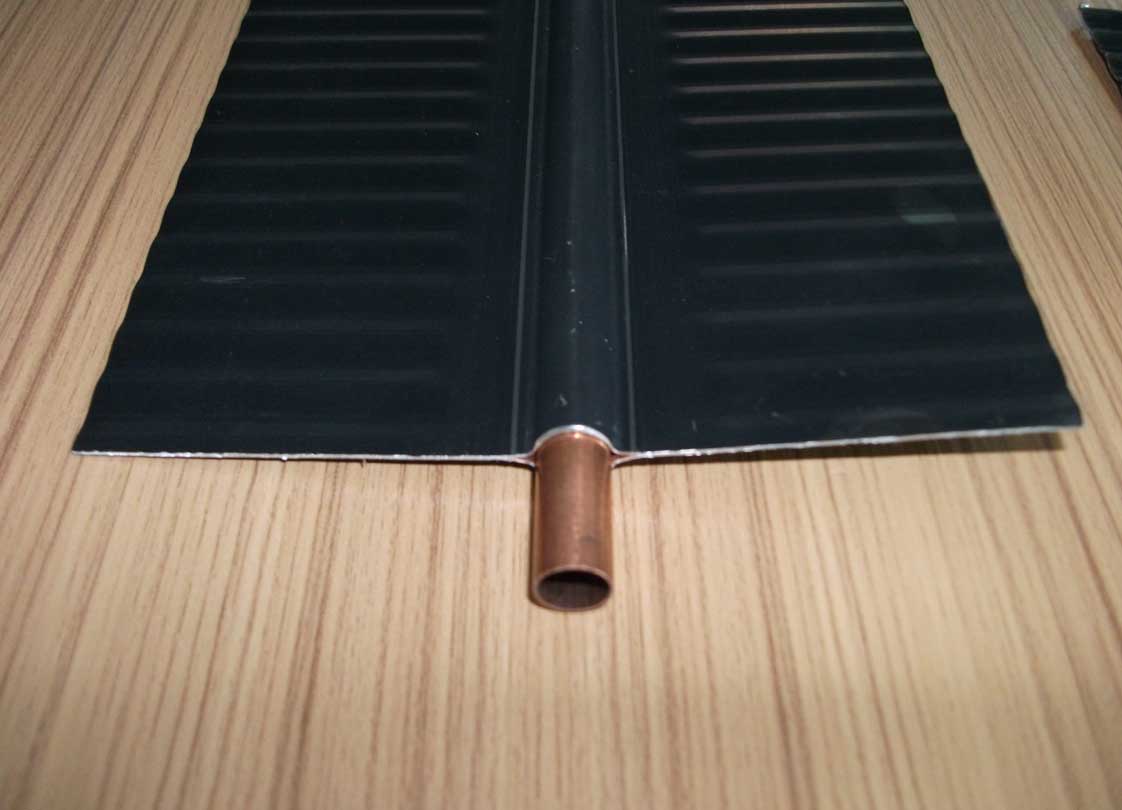

Copper Riser Tubes Spec. |
Ф10 X 0.5mm X 8 pcs |
Ф10 X 0.5mm X 10 pcs |
Ф10 X 0.5mm X 12 pcs |
|
Copper Header Tubes Spec. |
Ф22 X 0.6 X 1060 mm (2pcs) |
Ф22 X 0.6 X 1310 mm (2pcs) |
Ф22 X 0.6 X 1560 mm (2pcs) |
|
Absorber Strip |
125 X 0.5 mm | ||
|
Absorber material |
AL-AL | ||
|
Surface Coating |
Black Anodized | ||
|
Absorptivity |
85±2% | ||
|
Emissivity |
15±2% | ||
|
Insulation Material |
40 mm Glass wool (30K) | ||
|
Frame |
Aluminum alloy | ||
|
Glass |
4.0 mm patterned tempered glass | ||
|
Backing Sheet |
0.5 mm Aluminium Sheet | ||
|
weight of the empty collector |
30 Kg |
36 Kg |
42 Kg |
|
Fluid Volume (L) |
1.9L |
2.2L |
2.6L |
