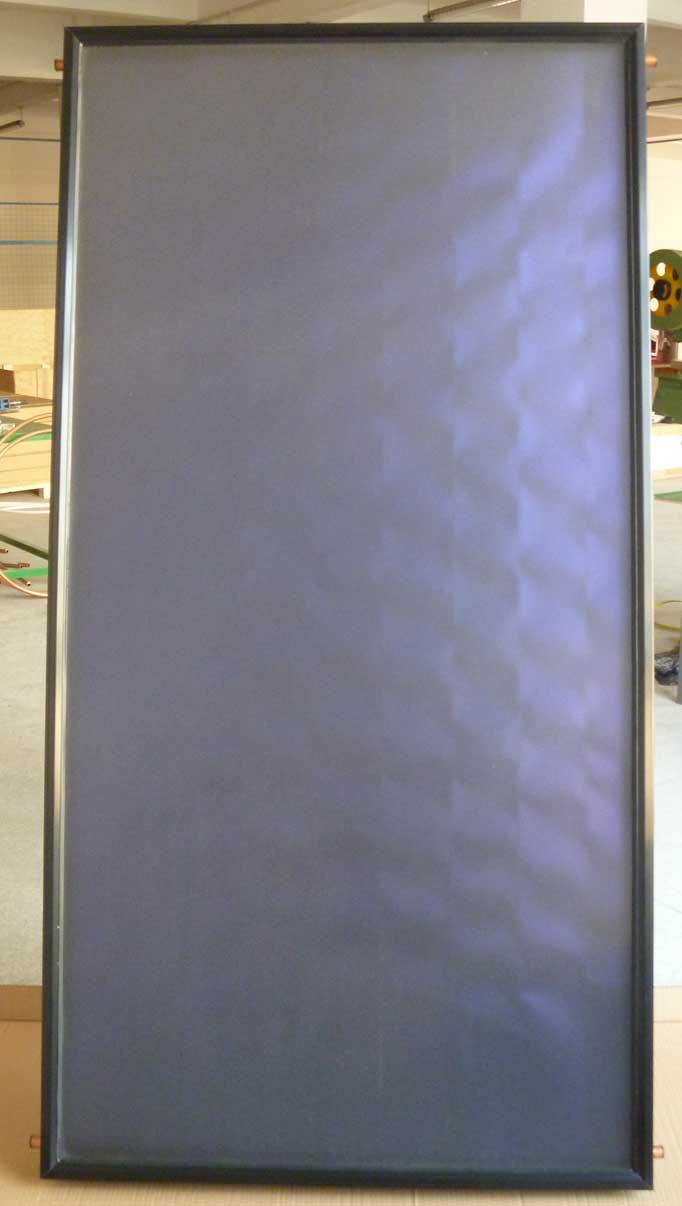

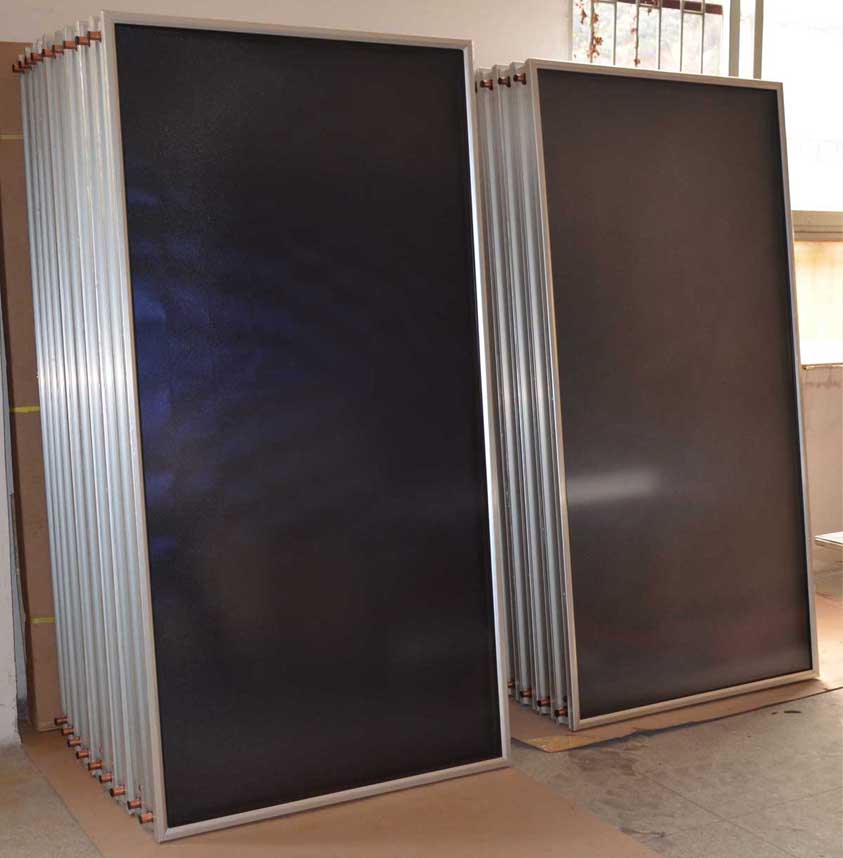

Blue Full Aluminium Absorber Collector



Type : FB2.0-Blue(F), FB2.5-Blue(F), FB3.0-Blue(F)




Innosolar’s blue Full Aluminiun absorber flat plate collectors are manufactured according to European quality standards. By introducing BLUETEC coating layer from Germany and applying Laser welding technology, our products, with stable quality , have been sold in batches to European markets.Featuring optimal and reasonable structures, fine  appearance and easy installation,our products are well combined with buildings and applicable to household and scaled systems.









+ Stylish slim line design
+ Absorber coating: Germany BlueTec coating

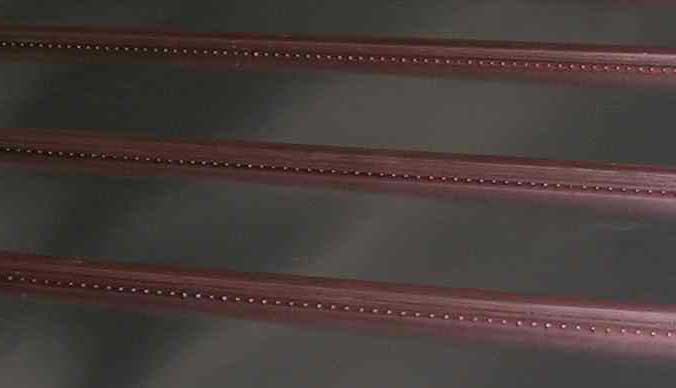

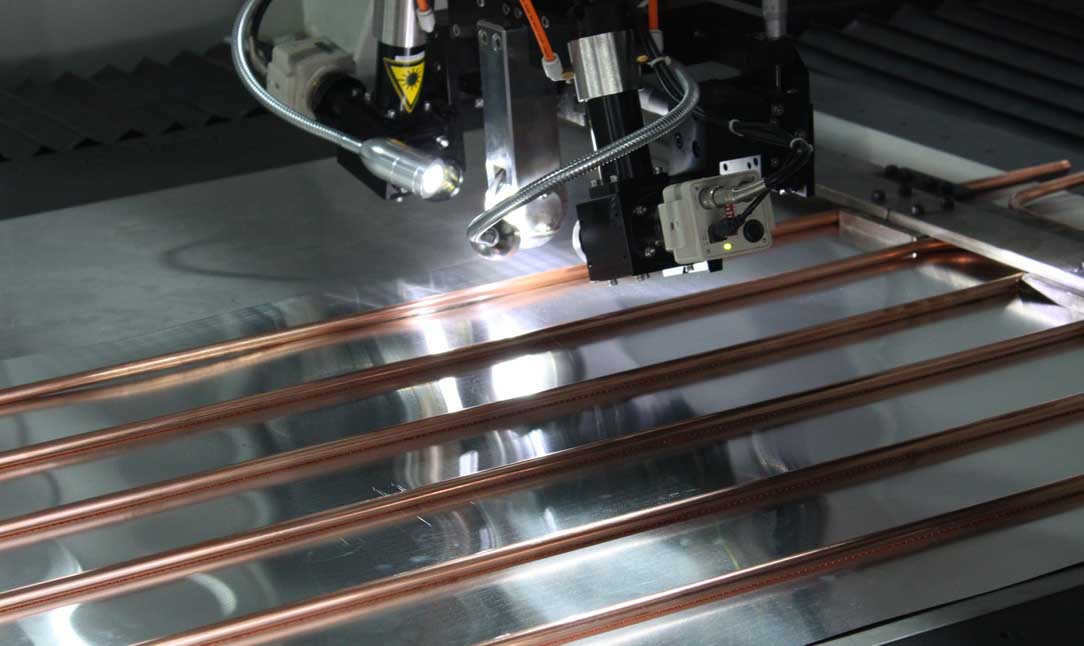

+ Full Plate Laser Welding Technology
+ Low-iron patterned tempered glass.
+ Good waterproof performance
+ Reliable, low maintenance operation
+ Strong design to withstand ice storm.
+ Easy mounting and installation.
+ Details of the Product and quality is important for us.







Types

FP2.0-Blue(F)

P2.5-Blue(F)

P3.0-Blue(F)

Ext. Dimensions (mm)

2000(L) X 1010(W) X 80 (H)

2000(L) X 1250(W) X 80 (H)

2000(L) X 1500(W) X 80 (H)

Copper Riser Tubes Spec.

Ф10 X 0.5mm X 8 pcs

Ф10 X 0.5mm X 10 pcs

Ф10 X 0.5mm X 12 pcs

Copper Header Tubes Spec.

Ф22 X 0.8 X 1060 mm (2pcs)

Ф22 X 0.8 X 1310 mm (2pcs)

Ф22 X 0.8 X 1560 mm (2pcs)

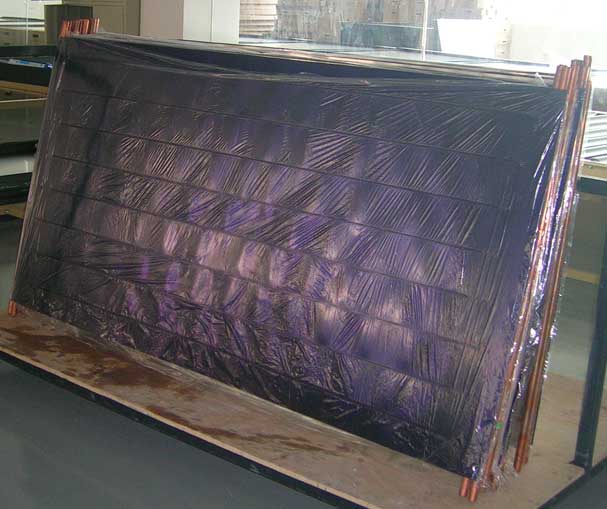

Absorber

Full absorber

Surface Coating

BlueTec

Absorptivity

95±2%

Emissivity

5±2%

Insulation Material

40 mm Glass wool (30K)

Frame

Aluminum alloy

Glass

4.0 mm patterned tempered glass

Backing Sheet

0.5 mm Aluminium Sheet

weight of the empty collector

37 Kg

42 Kg

48 Kg

Fluid Volume (L)

1.9L

2.2L

2.6L
